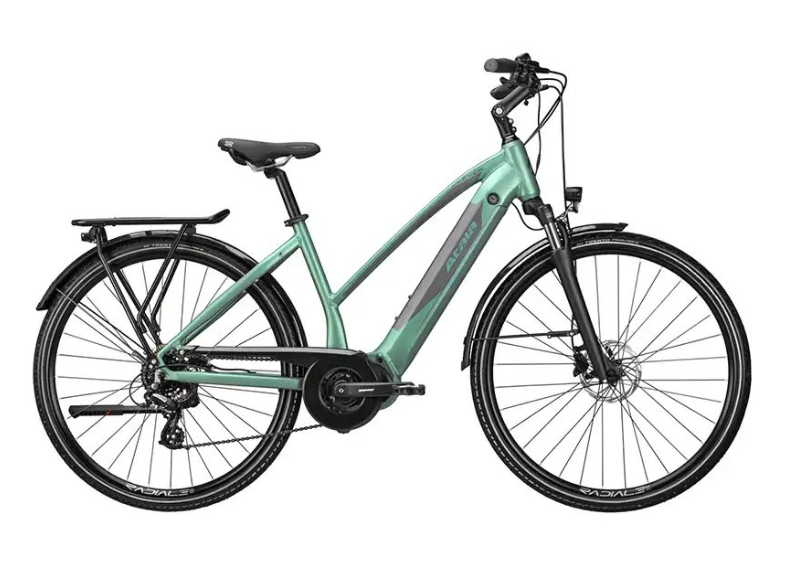

ELECTRIC BIKE ATALA CLEVER 7.4 28" 7V AM80 AGILE 100NM 522WH 2024

Colors

Green Forest

Sizes

45 - 49

Mechanical specifications

Chassis Alu. Hydroformed 700c, integrated battery, internal cables

Fork Suntour NEX 700c, alu with alu crown, 63mm travel

Steering series FSA integrated ahead 1”1/8

Garnish Alu 170mm, FSA 38T

Change Shimano Altus RD-M310

Commands Shimano SL-M315 PushPull, 7s

Brakes Shimano BR-MT200 hydraulic disc, Rotor 160 mm CL

Sprocket pack Shimano HG200 7s 12-32

Pedals Anti-slip resin

Hubs Shimano TX505 32h, CL, quick release

Searches Radial E25 700c, double wall, 32h, disc

Handlebar stem Over, ahead, adjustable

Handlebar bend Alu over TKK, 640mm, rise 25mm

Seatpost Suspended 40mm, 30.9mm

Saddle Selle Royal Lancia

Coverings Byte Trento 700x45c, with reflecting line

Mudguards Single stay fast, edge

Chain guard L type, edge

Luggage rack Rear alu 14mm with spring, 25kg load

External lights Axa front (15 lux) and rear LED, controlled by display and twilight sensor

Cut 45 - 49

Color Green Forest

Notes kickstand Ursus adjustable rear, bell, keyring

Electrical specifications

Maximum torque 100Nm

Sensor type Torque

Drums 522

Charger type 2A Europlug

Charging time 100%: 7h:45m / 80%: 5h48m

Max assisted speed 25 km/h

Display Atala A23 LCD CAN, side

Power 5 levels, Power adjustlevel1: 50%level2: 100%level3: 150%level4: 200%level5: 250%

Other functions Walking assistance External light control Speed ​​information Battery information
