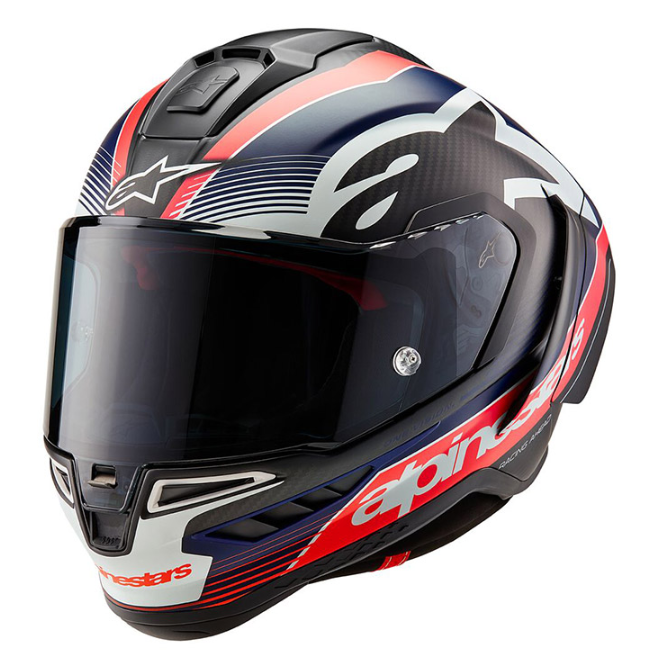

Alpinestars Supertech R10 Team helmet in matt blue

Sculpted by speed

Designed and developed for professional MotoGP riders where the goal is to go FASTER and be PROTECTED.

By minimizing aerodynamic drag and ensuring optimal aerodynamic stability, air management inside and outside the helmet and a comfortable, customizable fit, the S-R10 model enhances the overall racing and sports riding experience. The Supertech R10 is Alpinestars' ultimate racing helmet.

Designed to perform and protect

Optimized chin guard design for maximum collarbone protection. In addition to the optimized shell for aerodynamic and resistance performance, it is also designed with a recess in the collarbone area to soften any contact with the body. The chin guard is designed to be lightweight and robust, protecting the rider's chin.

CARBON SHELL

Multi-layer composite construction bonded with advanced epoxy resin to maximize strength and mechanical performance to weight ratio.

Multilayer construction

The internal and external design and material densities are optimized for maximum protection against linear and oblique impacts.

The lower profile of the shell is designed to protect the rider's collarbone in the event of a strong impact.

Helmet shape developed to improve aerodynamic efficiency and stability.

The Race spoiler and winglets further reduce air resistance by 4.54%

The aerodynamic spoiler features a patented release system, also used on the Alpinestars S-M10 motocross helmet visor, with elastic joints that help the spoiler detach from the helmet shell if subjected to a significant impact, regardless of the angle. 2 spoilers available: Road (standard) and Race - with a more drastic aerodynamic effect.

The side fins support stability and improve aerodynamic resistance. The S-R10 helmet is equipped with turbulators on the visor, to improve aero-acoustic performance

220° lateral view and 57° vertical view

Visor profile lowered at the sides for maximum lateral vision in the riding position.

Maximum vision

Low visor profile and head position are maximized for maximum vision and riding comfort. The sideline is lowered for lateral vision in any position.

Visor construction

The visor is supplied with pins for attaching a Pinlock 120XLT 100% Max Vision lens. It is also supplied with pins for attaching tear off films.

ECE 2206 approved

Optical Class 1 Visor

The visor mechanism is equipped with metal locking levers to prevent unwanted visor opening during impacts, blocked in the closed position by a front metal hook. The kinematic movement is designed to perfectly seal the visor against the rubber gasket of the shell window, keeping itself away from the shell during the opening phase. The quick release system allows for quick and easy visor replacement without tools.

11 Air intakes

Chin ventilation
The chin vent consists of two openings located on the front of the helmet on either side of the visor locking mechanism. Each opening has a tab in the corner, which is used to open or close the vent. The air entering from this point will be channeled towards the inside of the visor, creating a laminar flow of air that effectively prevents fogging and condensation.

Chin vents
These are used to expel moist air outside the helmet.

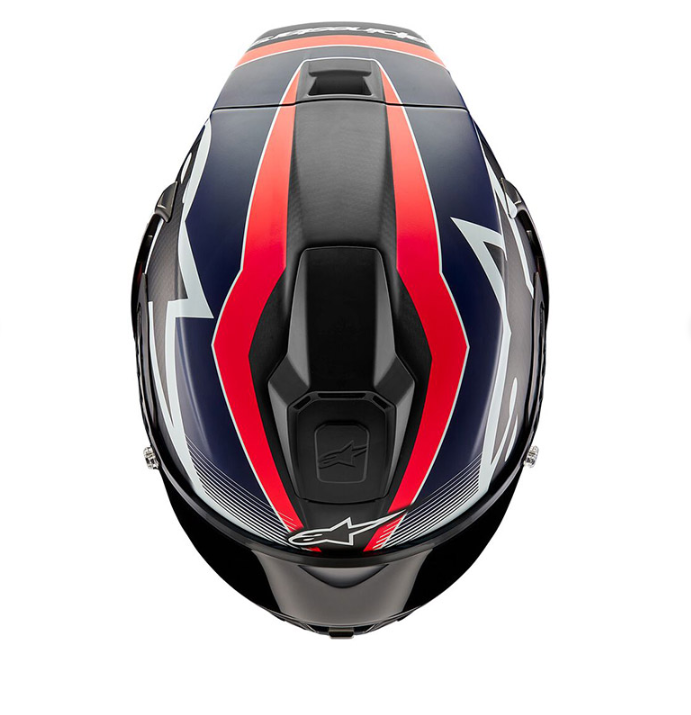

Top ventilation
The large central slider channels air to the top of the head for improved comfort. This, in turn, when open, features vents to extract hot air from the rider's forehead.

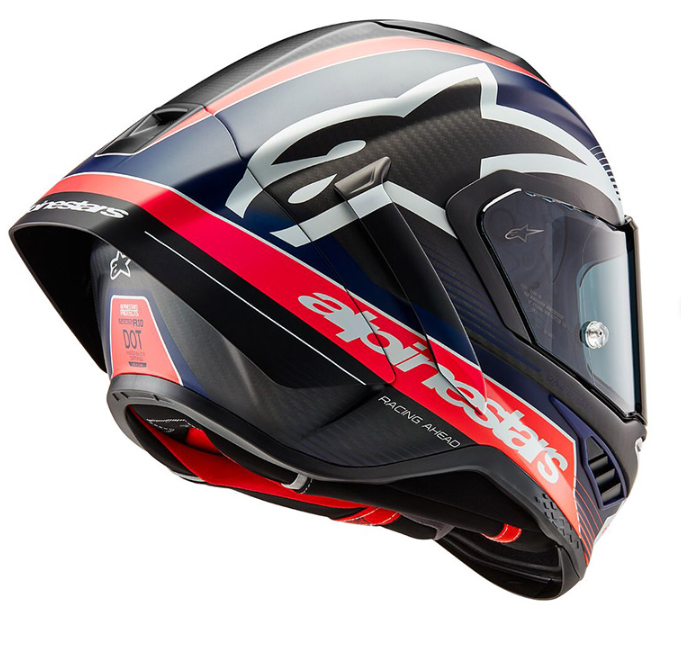

Rear spoiler
Under the rear spoiler, there are two air outlets for effective extraction of hot air.

EPS protection

EPS foam designed to distribute impact absorbing properties exactly where they are needed.

The EPS features Alpinestars’ patented A-Head height and angle adjustment system, originally used with great success on the S-M10 motocross helmet, to allow the product to be adjusted exactly to the rider’s preference in terms of the height and angle at which the helmet sits on the head.

Ready for hydration tube

Emergency release system
Safe and easy removal of cheek pads while the helmet is still on.

The Supertech R10 has ECE/DOT/FIM approval.
3 shell sizes: XS-S, M, L, XL-2XL
Weight: 1490 gr for small shell, 1540 gr for medium shell, 1590 gr for large shell, 1645 gr for Xlarge shell
Accessories included: Clear visor mounted, dark visor, Pinlock, Tear offs, nose guard.
